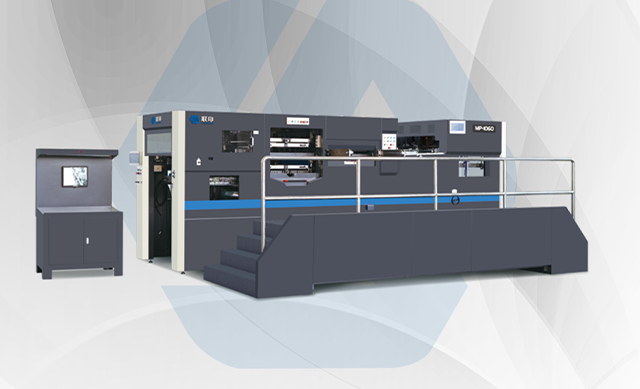

MP 1060 Automatic Stripping And Die-Cutting Machine

Overview

The MP 1060 Automatic Stripping And Die-Cutting Machine is a state-of-the-art solution designed for modern packaging and printing applications. Combining fully automatic stripping and high-precision die-cutting, the MP 1060 ensures consistent, professional-quality output. Its durable steel frame, intelligent PLC control system, and integrated safety features allow smooth, efficient operation, making it ideal for folding cartons, paperboard packaging, labels, and corrugated boxes.

This machine is engineered to reduce manual labor, improve production efficiency, and deliver precise, repeatable results. Its versatility and reliability make it a top choice for industrial packaging manufacturers and printing enterprises worldwide.

Product Specifications

Technical Advantages

The MP 1060 is designed to provide high-speed, precise, and efficient production, combining innovative features that set it apart from conventional die-cutting machines.

1. High-Speed Production

• Capable of processing up to 6,500 sheets per hour without compromising accuracy.

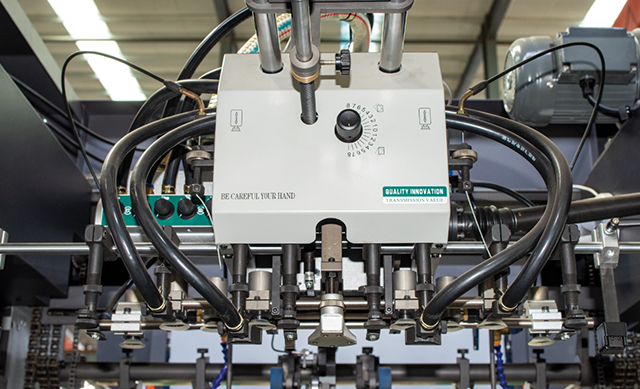

• Servo-driven feeder and stripping systems ensure continuous operation and minimal downtime.

2. Precision Die-Cutting

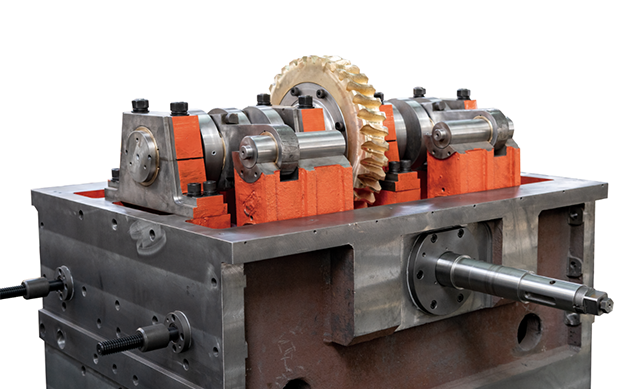

• Advanced crankshaft and pressure distribution system delivers even cutting across the entire sheet.

• Die-cutting accuracy ±0.1 mm ensures consistent results, reducing material waste.

3. Fully Automatic Stripping

• Top and bottom stripping pins remove waste efficiently.

• Servo-controlled movement guarantees precise alignment and clean finished sheets.

• Quick-change stripping components allow rapid job adjustments.

4. Robust and Durable Structure

• Reinforced steel frame minimizes vibration and ensures long-term stability.

• Industrial-grade bearings and components improve reliability and reduce maintenance frequency.

5. User-Friendly Operation

• PLC control with HMI touchscreen simplifies setup and monitoring.

• Memory function stores production parameters for repeated jobs.

• Multi-language interface accommodates global operators.

Fault Analysis and Troubleshooting

Understanding common faults and their causes helps reduce downtime and maintain consistent production quality.

Regular maintenance and operator training are essential to minimize recurring issues and maximize operational efficiency.

Usage Recommendations

To ensure optimal performance and prolong machine life, operators should follow these guidelines:

1. Material Selection: Use sheets compatible with recommended thickness and density.

2. Pre-Operation Checks: Verify air pressure, lubrication, and safety systems before starting production.

3. Warm-Up Procedure: Allow hydraulic and control systems to stabilize for 10–15 minutes before full-speed operation.

4. Batch Settings: Store job parameters in the HMI memory to reduce setup time for repeated jobs.

5. Operator Training: Ensure all operators are trained in setup, operation, and safety procedures.

6. Safety Compliance: Always wear personal protective equipment and avoid bypassing interlocks.

Maintenance Guidelines

Proper maintenance ensures consistent performance, reduces downtime, and extends the life of the MP 1060.

Daily Maintenance

• Clean the feeder, die-cutting plates, and stripping pins to remove dust and debris.

• Apply recommended lubrication to bearings, guide rails, and moving components.

• Verify air pressure in nozzles and feeder system.

• Inspect safety sensors and emergency stops for proper function.

Weekly Maintenance

• Check belt and chain tension, adjusting as needed.

• Inspect and tighten mechanical fasteners.

• Examine stripping system alignment and functionality.

Monthly Maintenance

• Inspect die-cutting plates for wear or deformation.

• Test PLC and HMI responsiveness.

• Check electrical wiring and connections for wear or damage.

Annual Maintenance

• Replace lubricants and hydraulic oil according to manufacturer specifications.

• Conduct full system calibration, including die pressure and sheet alignment.

• Arrange for an official service inspection by certified engineers.

Precautions

• Keep hands and clothing away from moving parts during operation.

• Do not operate without safety covers in place.

• Immediately stop the machine if abnormal noises or vibrations occur.

• Ensure the production area is clean and free from obstacles.

• Avoid overloading the machine with sheets exceeding recommended size or thickness.

Applications

The MP 1060 is ideal for a wide range of packaging and printing applications:

1. Folding Cartons – For consumer goods, pharmaceuticals, and food packaging.

2. Cardboard Packaging – High-volume production for shipping and retail packaging.

3. Labels and Paperboard Displays – Precision die-cutting ensures professional appearance.

4. Corrugated Boxes – Lightweight or specialty printed corrugated sheets for commercial use.

Its combination of automatic stripping, precision die-cutting, and high-speed performance makes it suitable for both small-scale specialty production and large-volume industrial manufacturing.

Technical Advantages Summary

Conclusion

The MP 1060 Automatic Stripping And Die-Cutting Machine combines precision, efficiency, and automation to meet the demands of modern packaging and printing industries. Its high-speed die-cutting, fully automatic stripping, and robust construction ensure consistent quality, reduced labor, and reliable operation.

By adhering to recommended usage, maintenance, and safety guidelines, manufacturers can achieve long-term performance, minimized downtime, and professional-quality finished products. This machine is a cost-effective and reliable solution for industrial packaging and printing enterprises seeking to optimize productivity and maintain high standards.
