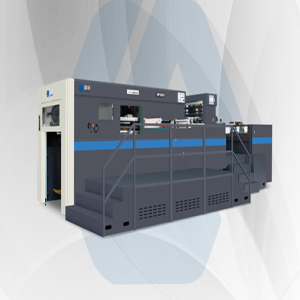

MP 1520 Automatic Front Edge & Lower Nozzle & Stripping & Die-Cutting Machine

The MP 1520 Automatic Front Edge & Lower Nozzle & Stripping & Die-Cutting Machine represents the latest generation of high-efficiency die-cutting technology, engineered to deliver superior precision, high productivity, and unmatched reliability. With an innovative front-edge feeding system, lower nozzle air assistance, and fully automated stripping and die-cutting functions, this machine is designed to meet the demanding requirements of packaging, printing, and paper processing industries.

Key Features and Performance Highlights

The MP 1520 integrates precision mechanical design with intelligent control systems, ensuring smooth, stable, and accurate operation even under continuous high-speed production.

Main Features

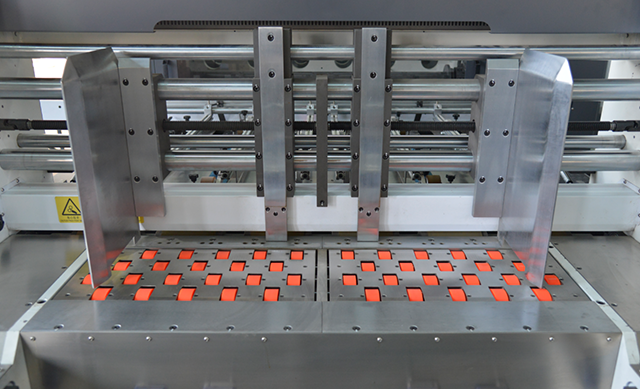

• Automatic Front Edge Feeding System – Ensures accurate paper alignment and stable sheet transfer.

• Lower Nozzle Air Assistance – Reduces friction and improves feeding smoothness, especially with large or thick materials.

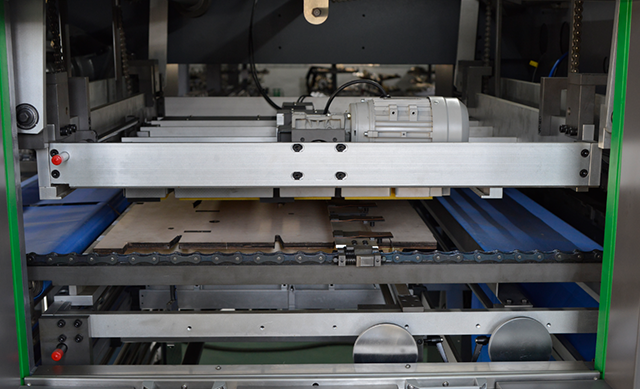

• Full Automatic Stripping and Die-Cutting – Enhances productivity and reduces manual labor.

• High-Precision Control System – PLC touchscreen interface allows for easy parameter setting and real-time monitoring.

• Energy-Efficient Design – Optimized power consumption and reduced mechanical wear.

• Comprehensive Safety System – Includes emergency stop, overload protection, and safety guards.

Warranty Policy

The MP 1520 comes with a comprehensive warranty designed to ensure customer confidence and long-term satisfaction.

1. Standard Warranty Period: 12 months from the date of installation.

2. Coverage: Includes mechanical parts, electrical systems, and control modules under normal usage conditions.

3. Exclusions: Damage caused by improper operation, lack of maintenance, or unauthorized modification.

4. Replacement Parts: Defective parts covered by warranty will be replaced free of charge.

5. Technical Support: Lifetime technical consultation and remote diagnostic service are available.

Warranty Support Procedure

• Contact the service department with the machine serial number and fault description.

• Provide photos or videos of the issue for remote diagnosis.

• Replacement components will be shipped after confirmation.

Quick Installation Guide

The MP 1520 Automatic Die-Cutting Machine is designed for straightforward installation, minimizing setup time and ensuring rapid commissioning.

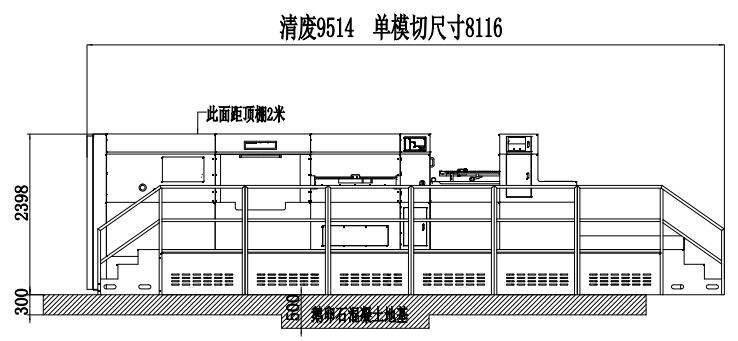

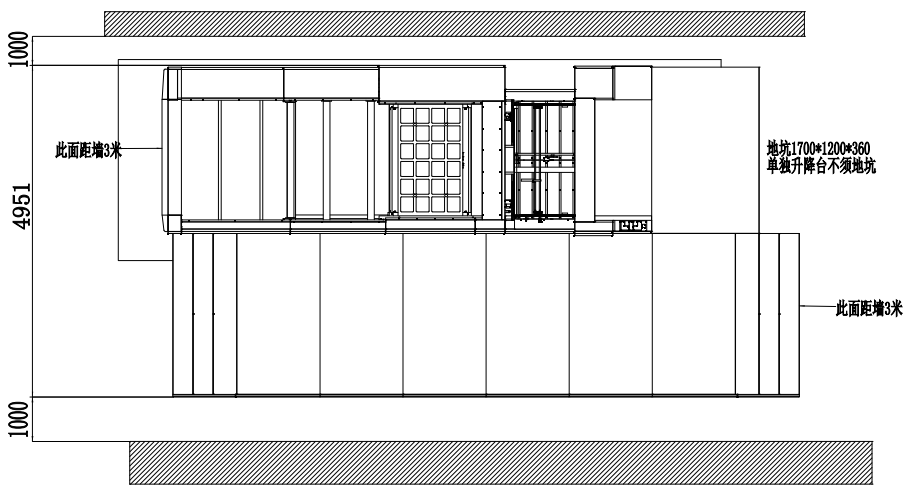

1. Pre-Installation Requirements

• Foundation: The installation site must be level, vibration-free, and capable of supporting the machine’s weight.

• Power Supply: Ensure a stable 380V / 50Hz power connection with appropriate grounding.

• Environmental Conditions: Recommended temperature between 15°C – 30°C with low humidity.

2. Installation Steps

1. Unpacking and Inspection

• Carefully remove protective packaging.

• Verify all components and accessories according to the packing list.

2. Positioning

• Place the machine using a forklift or crane, aligning it with the prepared foundation.

3. Electrical and Pneumatic Connection

• Connect the main power cable and air supply according to the user manual.

• Confirm the voltage and air pressure meet operational standards.

4. System Initialization

• Power on the machine and perform an initial diagnostic test through the touchscreen interface.

• Verify feeding alignment, pressure adjustment, and cutting accuracy.

5. Trial Operation

• Conduct a low-speed trial run using test materials.

• Adjust feeding speed, die-cutting pressure, and stripping timing as necessary.

Routine Maintenance and Servicing

Proper maintenance ensures the long-term reliability and cutting precision of the MP 1520.

Daily Maintenance

• Clean Work Area: Remove paper dust and debris from cutting and stripping zones.

• Lubricate Moving Parts: Apply lubricant to the guide rails and gears daily.

• Inspect Blades and Dies: Check for dullness or wear; replace if necessary.

• Check Air Pressure: Ensure stable air pressure for the nozzle system.

Weekly Maintenance

• Tighten Screws and Bolts: Vibration may loosen fittings; check weekly.

• Inspect Electrical Connections: Confirm secure wiring and connectors.

• Calibrate Sensors: Verify photoelectric sensors and feeding alignment.

Monthly Maintenance

• Replace Filters: Air and oil filters should be cleaned or replaced monthly.

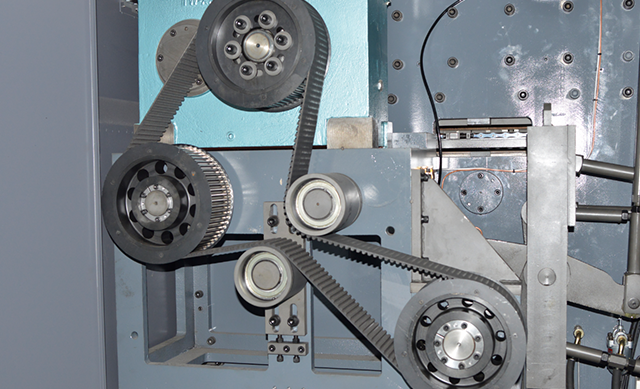

• Check Drive Belts: Inspect tension and wear; adjust or replace if needed.

• Review Operation Logs: Identify patterns in machine usage for preventive maintenance.

Quality Inspection and Testing

Every MP 1520 Die-Cutting Machine undergoes a strict quality control process before delivery to ensure superior performance and durability.

Quality Inspection Checklist

1. Mechanical Precision Test

• Ensures stable feeding and uniform cutting pressure.

2. Electrical Safety Test

• Confirms insulation resistance and grounding protection.

3. Performance Trial Run

• Full-speed operation test for at least 4 hours before shipment.

4. Noise and Vibration Evaluation

• Tests ensure the system meets industrial noise standards.

5. Final Acceptance Report

• A certified report is provided with every unit, including parameter data and test results.

Advantages of MP 1520 for Industrial Production

1. Superior Cutting Accuracy – Ensures consistent quality across various materials.

2. High Productivity – Automatic systems increase efficiency and reduce manual work.

3. Stable Operation – Precision feeding with air-assist technology prevents misfeeds.

4. Reduced Material Waste – Optimized stripping and cutting paths minimize loss.

5. User-Friendly Design – Simplified control interface reduces operator fatigue.

6. Long-Term Value – Robust structure and global after-sales support guarantee durability.

Conclusion

The MP 1520 Automatic Front Edge & Lower Nozzle & Stripping & Die-Cutting Machine is a professional-grade solution built for packaging, printing, and industrial paper processing. Combining advanced feeding technology, precise die-cutting, and automatic stripping, it delivers unmatched speed, accuracy, and operational stability.

With comprehensive warranty coverage, a quick installation process, structured maintenance guidelines, and a certified quality inspection report, the MP 1520 ensures long-term reliability and outstanding return on investment. For businesses seeking to improve production efficiency and product quality, the MP 1520 is a top-tier choice in the modern die-cutting market.
